Couple questions
« on: May 21, 2016, 07:57:36 am »
#1

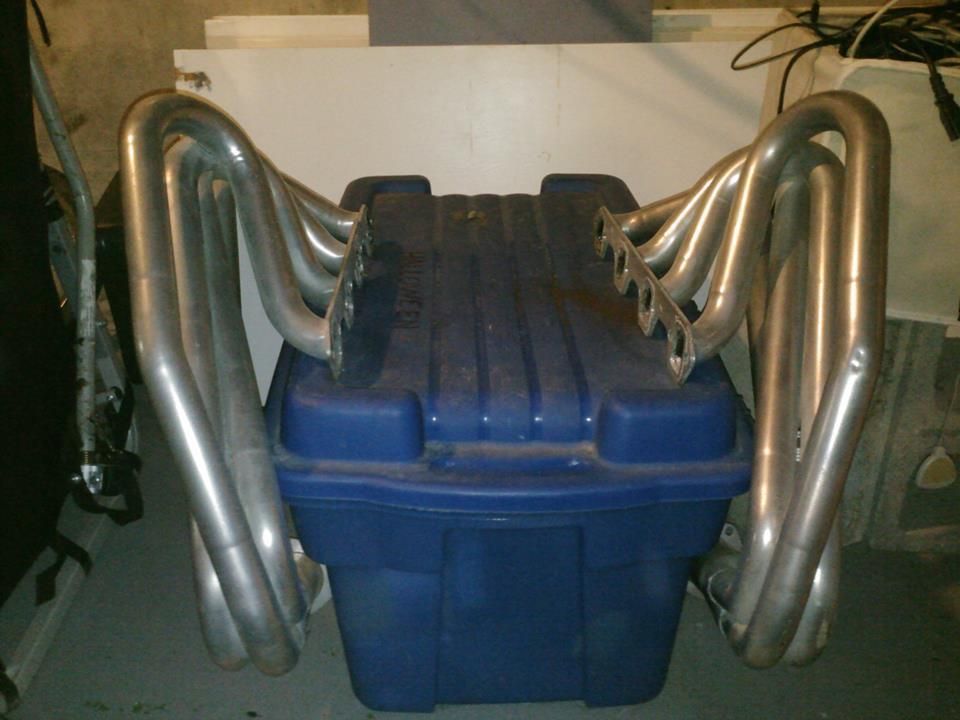

I have two sets of (vintage) Headman headers for SBF swaps into Pintos.
One set (NOS) has rectangle ports, the other oval : Why ? I have never seen a 302w with oval ports. Any ideas ?




#2
What are these called & where to get ?
They are aluminum. Measure a whisker over 13/16"



They are for my air dam:

Blue is faster : It's Slipperier !

Offline sportyworty

  • No Life
  • *****
  • Posts: 1,215
Re: Couple questions
« Reply #1 on: May 21, 2016, 09:30:00 am »
Windsor on left.
Cleveland 2V on the right. Not vintage
"To steal ideas from one person is plagiarism; to steal from many is research."

8F91R577646 Black/Red 4 speed

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #2 on: May 21, 2016, 10:08:18 am »
Headman hasn't made the swap headers since the late 70s or 80s.
The oval port ones bolt up to 302w heads.
Also have to use front engine mounts.



Blue is faster : It's Slipperier !

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #3 on: May 21, 2016, 10:18:35 am »
They bolt (of course) to a 351w as well. But they will not clear the cross member of that taller engine.


Rectangle ones:





I had contacted Headman to see if these, as well as the same style for a B2 can still be purchased : no.
They had no idea where the jigs would be & had no interest in trying to make any.
Both sets measure up the same for clearance (height).
Blue is faster : It's Slipperier !

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #4 on: May 21, 2016, 10:24:25 am »
Have a couple pictures of a used set for 351C





I know a guy building a 71 Pinto with a 351C. He found a NOS set of these.

Cannot help but wonder how many sets are sitting on some back shelf in places all over the US & Canada.......
Blue is faster : It's Slipperier !

Offline crossboss

  • PT Group
  • Needs A Job
  • *****
  • Posts: 6,626
  • ^My Old Heap Boss 302…aka S-B Racing!
Re: Couple questions
« Reply #5 on: May 21, 2016, 11:54:20 am »
Windsor on left.
Cleveland 2V on the right. Not vintage


Kerry,
Both are for Windsor engines. Cleveland has the 'canted' (no pun!) exhaust bolt pattern as in Reeves last pictures. I also have seen Windsor round or square exhaust ports on headers  among different header companies. Btw, Reeves I believe Hooker made (or still does) an 'engine swap' header kit for the Pinto. That said, I have no clue as to what engine(s).
Current lifelong project:
1969 Mustang Fastback/FOX chassis, 5 speed, 4 wheel discs, with a modern Can-Am 494 (Boss 429), Kaase heads, intake mounted with a 1425 cfm 'B' Autolite Inline carb, ala Trans-Am style…Whew!

Offline sportyworty

  • No Life
  • *****
  • Posts: 1,215
Re: Couple questions
« Reply #6 on: May 21, 2016, 12:01:14 pm »
doh and I just bolted a set on yesterday. Of course the exhaust is diagonal, carry on forget I was here ;D

I just saw the small round ports and thought hey those look like my Hedman headers for the Oz 2V heads
"To steal ideas from one person is plagiarism; to steal from many is research."

8F91R577646 Black/Red 4 speed

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #7 on: May 21, 2016, 05:21:07 pm »
The Hooker SBF headers look like this. Back 2 tubes go through the inner fenders, down by swing arms & behind the strut arms, under frame rail , to collectors. # 6061 I think.
These, of course, are not them.





These are 2" tubes to 3 1/2" collectors.
Blue is faster : It's Slipperier !

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #8 on: May 21, 2016, 05:24:54 pm »


Blue is faster : It's Slipperier !

Offline Reeves1

  • No Life
  • *****
  • Posts: 1,223
  • Alberta Canada
Re: Couple questions
« Reply #9 on: May 21, 2016, 05:37:36 pm »
Fairly sure I posted this before ?

I think it was Herbert & Meek (?) that also used to make a swap kit.
I actually like these the best. Used in my first two Pinto swaps.





I was going to buy the top set not long ago. Let a "buddy" buy them & wanted him to have a builder make another set......he couldn't find one to do so.
2nd pic of a car that was for sale.
Blue is faster : It's Slipperier !

Offline TA28

  • PT Group
  • Needs A Job
  • *****
  • Posts: 2,366
Re: Couple questions
« Reply #10 on: May 21, 2016, 07:18:08 pm »
I think the crane fireball heads for the 289/302w had round exhaust ports
